Induction Cap Sealing Machine Details

Looking for an efficient and reliable Induction Cap Sealing Machine supplier / Manufacturer ? Technogen Enterprise is the perfect place for you! Specializing in the production of huge range of Automatic induction cap sealing machine (air cooled version), we provide top-notch services worldwide.

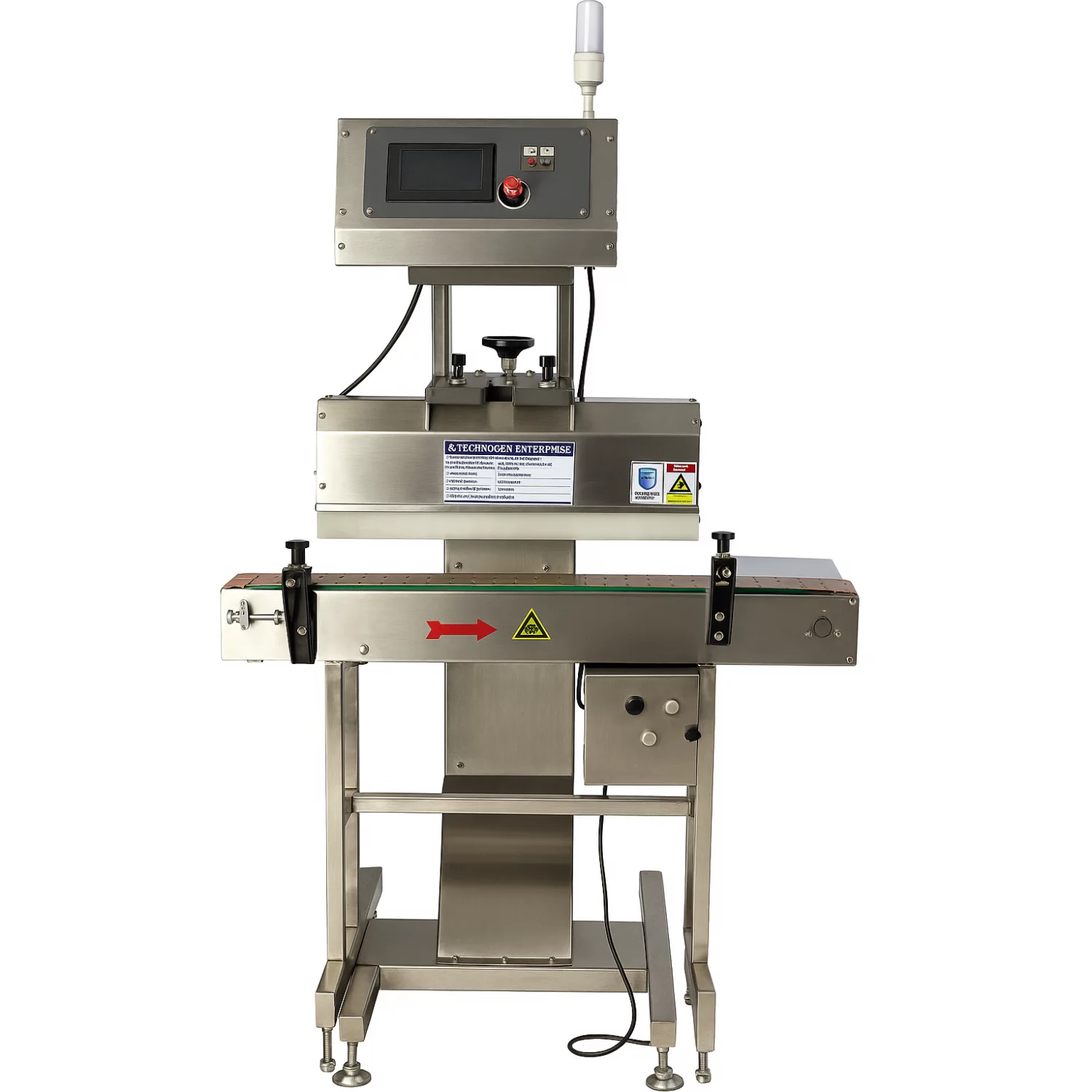

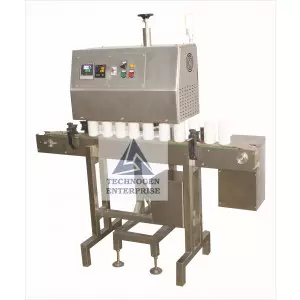

Technogen Enterprise based in Ahmedabad is manufacturer, exporter and supplier of a fine grade of advance air-cooled online induction cap sealing machine. This state-of-the-Art Induction Cap Sealing Machine comes in 3 variant which are low speed , medium speed and high-Speed model. This machine is used on a continuous production line. This unit is mounted after capping unit.

In the induction cap sealing Machine, the induction sealing head unit is placed over the line conveyor & Machine seals bottle as it passes under sealing head by a non-contact electromagnetic heating action.

The heating is controlled through equipment used in the control panel and is preset as per the line speed and bottle diameter. Height of the induction sealing head unit can be adjusted as per bottle sizes.




SALIENT FEATURE:



  • CGMP Model: Conforms to Current Good Manufacturing Practice standards.
  • Compact Construction: Designed with space efficiency in mind.
  • Stainless Steel 304 Construction: Ensures durability, hygiene, and resistance to corrosion.
  • Electromagnetic Heating Action for Sealing: Utilizes electromagnetic heating for efficient and reliable sealing.
  • Induction Sealing Head Components: Comprises a condenser, output transformer, and cooling fan for optimal performance.
  • Compact Inbuilt PLC-HMI: Integrates a Programmable Logic Controller with a Human-Machine Interface for streamlined operation.
  • Equipped with Current Controller: Ensures precise control over the sealing process.
  • Adjustable Voltage Protector: Enhances safety and protects components from voltage fluctuations.
  • Customizable Heating Time: Allows adjustment to match desired sealing speed.
  • Variable Speed Control: Enables variation in machine speed via a variable frequency drive for flexibility in operation.
  • Comprehensive Operating Panel: Features a combination PLC-HMI interface, main power switch, push buttons for start/stop functions, conveyor control, and speed adjustment, facilitating intuitive operation and control.



TECHNICAL SPECIFICATION:



Model

TGAICS-50BR

TGAICS-80BR

TGAICS-100BR

Machine speed

10 to 40 Bottles per minute depending upon the neck diameter of the bottle.

10 to 60 Bottles per minute depending upon the neck diameter of the bottle.

10 to 90 Bottles per minute depending upon the neck diameter of the bottle.

Neck Diameters

20mm – 60mm & 60mm - 100mm

20mm – 60mm & 60mm - 100mm

20mm – 60mm & 60mm - 100mm

Type of Head

Tunnel Type & Broad Type Head

Tunnel Type & Broad Type Head

Tunnel Type & Broad Type Head

Sealing Method

non-contact electromagnetic heating process

non-contact electromagnetic heating process

non-contact electromagnetic heating process

Adjustable Height of Sealing Head

0 - 300mm

0 - 300mm

0 - 300mm

Power consumption

1 KW

2 KW

2.5 KW

Electrical connection

230 Volts AC, Single Phase 50 Hertz

230 Volts AC, Single Phase 50 Hertz

230 Volts AC, Single Phase 50 Hertz

Induction Sealing unit Foot print (L X W X H) mm

800mm x 800mm x 1500mm

900mm x 900mm x 1500mm

950mm x 950mm x 1500mm

Conveyor Length

1530 mm

1830 mm

2130 mm
